產品展示

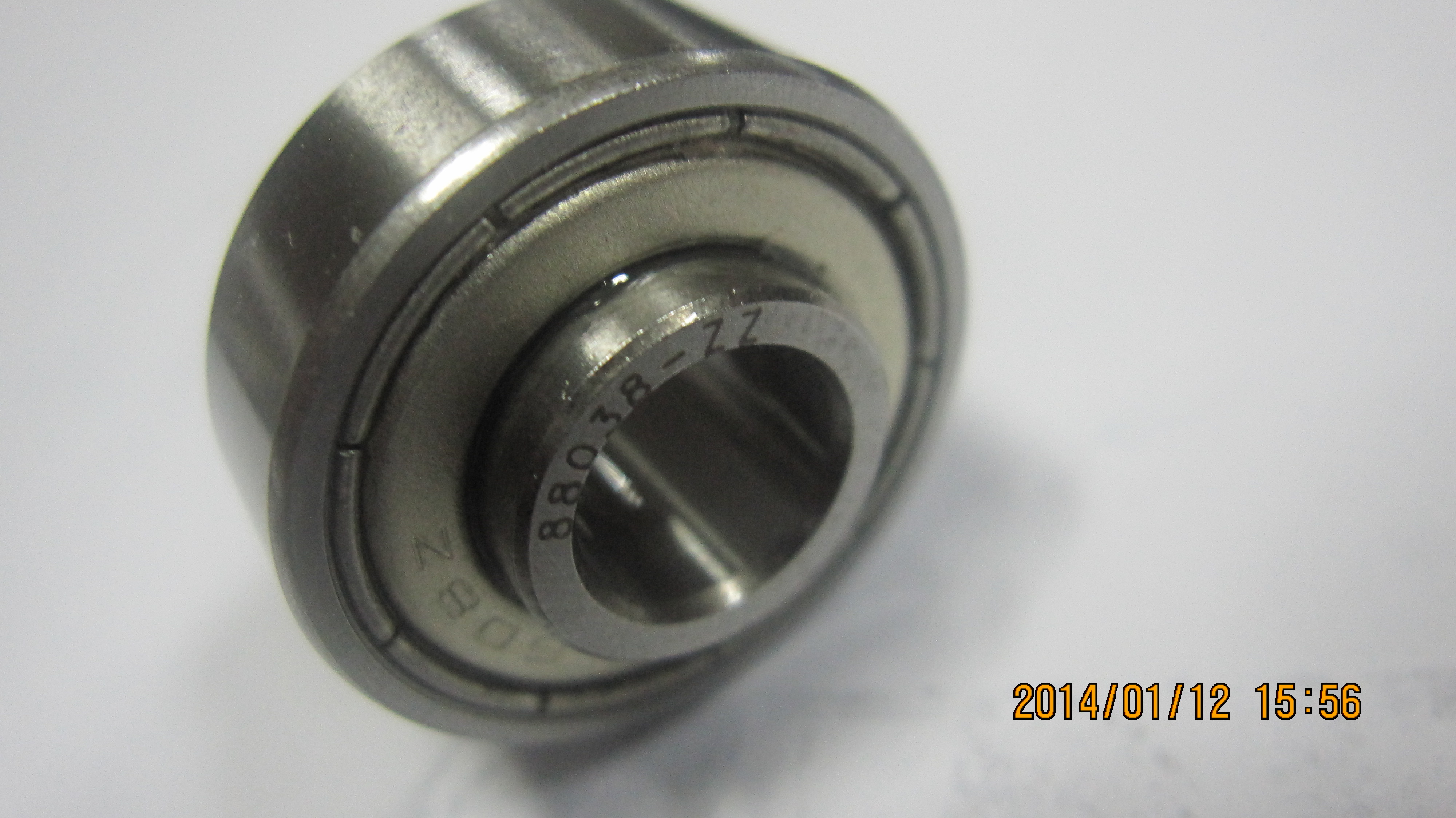

88038內圈雙凸軸承

Bearing NO.			Bore d		Outer Diameter D								Width		Radius		Basic Load Rating lbs.
Bearing NO.			Bore d		Outer Diameter D		W		Wo		Wi		Wii		r		Basic Load Rating lbs.
8000	87000	88000	mm	in.	mm	in.	mm	in.	mm	in.	mm	in.	Wii		r		Dynamic C	Static Co	8000	87000	88000
8000	87000	88000	mm	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm	n.	mm	n.	Dynamic C	Static Co	8000	87000	88000
8035	87035	87035	5	0.1969	19	0.7480	10.319	0.4036	8	0.3150	9.804	0.3860	12.624	0.4970	0.3	0.012	524	198	0.010	0.010	0.012
8036	87036	87036	6	0.2362	19	0.7480	10.319	0.4036	8	0.3150	9.804	0.3860	12.624	0.4970	0.3	0.012	524	198	0.011	0.011	0.012
8006	87006	87006	6	0.2362	24	0.9449	10.319	0.4036	8	0.3150	9.804	0.3860	12.624	0.4970	0.3	0.012	747	314	0.021	0.022	0.025
8037	87037	87037	7	0.2756	22	0.8661	10.319	0.4036	8	0.3150	9.804	0.3860	12.624	0.4970	0.3	0.012	740	306	0.017	0.018	0.020
8007	87007	87007	7	0.2756	24	0.9449	10.319	0.4036	8	0.3150	9.804	0.3860	12.624	0.4970	0.3	0.012	747	317	0.020	0.021	0.023
8038	87038	88083	8	0.3150	22	0.8661	10.319	0.4036	8	0.3150	9.804	0.3860	12.624	0.4970	0.3	0.012	740	306	0.016	0.017	0.018
8008	87008	88008	8	0.3150	24	0.9449	10.319	0.4036	8	0.3150	9.804	0.3860	12.624	0.4970	0.3	0.012	747	317	0.020	0.020	0.022
8039	87039	88039	9	0.3543	26	1.0236	10.319	0.4036	8	0.3150	9.804	0.3860	12.624	0.4970	0.6	0.025	1025	438	0.023	0.024	0.026
8009	87009	88009	9	0.3543	30	1.1811	12.7	0.5000	9	0.3543	12.192	0.4800	16.401	0.6457	0.6	0.025	1047	465	0.035	0.043	0.048
8500	87500	88500	10	0.3937	30	1.1811	12.7	0.5000	9	0.3543	12.192	0.4800	16.401	0.6457	0.6	0.025	1047	465	0.034	0.035	0.041
8011	87011	88011	11	0.4331	32	1.2598	12.7	0.5000	10	0.3937	12.192	0.4800	15.4	0.6063	0.6	0.025	1375	626	0.045	0.046	0.047
8501	87501	88501	12	0.4724	32	1.2598	12.7	0.5000	10	0.3937	12.192	0.4800	15.4	0.6063	0.6	0.025	1375	626	0.043	0.044	0.045
8013	87013	88013	13	0.5118	32	1.2598	12.7	0.5000	10	0.3937	12.192	0.4800	15.4	0.6063	0.6	0.025	1375	266	0.041	0.042	0.043
8014	87014	88014	14	0.5512	35	1.3780	12.7	0.5000	11	0.4331	12.192	0.4800	14.399	0.5669	0.6	0.025	1525	747	0.050	0.052	0.057
8502	87502	88502	15	0.5906	35	1.3780	12.7	0.5000	11	0.4331	12.192	0.4800	14.399	0.5669	0.6	0.025	1525	747	0.048	0.049	0.054
8016	87016	88016	16	0.6299	35	1.3780	12.7	0.5000	11	0.4331	12.192	0.4800	14.399	0.5669	0.6	0.025	1525	747	0.046	0.048	0.052
8602	87602	88602	15	0.5906	42	1.6535	15	0.5906	13	0.5118	14	0.5512	17	0.6693	1	0.040	1940	976	0.085	0.088	0.095
8503	87503	88503	17	0.6693	40	1.5748	14.288	0.5625	12	0.4724	13.665	0.5380	16.601	0.6536	0.6	0.025	1940	976	0.068	0.070	0.075
8603	87603	88603	17	0.6693	47	1.8504	16	0.6299	14	0.5512	15	0.5906	18	0.7087	1	0.040	2885	1494	0.115	0.117	0.127
8504	87504	88504	20	0.7874	47	1.8504	15.875	0.6250	14	0.5512	15.24	0.6000	17.75	0.6988	1	0.040	2885	1494	0.105	0.108	0.118
8604	87604	88604	20	0.7874	52	2.0472	19	0.7480	15	0.5906	18	0.7087	23	0.9055	1	0.040	3150	1785	0.157	0.160	0.181
8505	87505	88505	25	0.9843	52	2.0472	15.875	0.6250	15	0.5906	15.24	0.6000	16.749	0.6594	1	0.040	3150	1785	0.130	0.133	0.138
8605	87605	88605	25	0.9843	62	2.4409	21	0.8268	17	0.6693	21	0.8268	25	0.9843	1	0.040	3150	1785	0.268	0.273	0.295
8026	87026	88026	26	1.0236	52	2.0472	15.875	0.6250	15	0.5906	15.24	0.6000	16.749	0.6594	1	0.040	3150	1785	0.126	0.128	0.134
8506	87506	88506	30	1.1811	62	2.4409	20	0.7874	16	0.6299	19	0.7480	24	0.9449	1	0.040	1970	1140	0.225	0.230	0.260
8606	87606	88606	30	1.1811	72	2.8346	23	0.9055	19	0.7480	23	0.9055	27	1.0630	1	0.040	1970	1140	0.391	0.405	0.441
8507	87507	88507	35	1.3780	72	2.8346	21	0.8268	17	0.6693	20	0.7874	25	0.9843	1	0.040	2120	1330	0.316	0.322	0.348
8607	87607	88607	35	1.3780	80	3.1496	25	0.9843	21	0.8268	25	0.9843	29	1.1417	1.5	0.060	2120	1330	0.500	0.509	0.545
8508	87508	88508	40	1.5748	80	3.1496	24	0.9449	21	0.8268	24	0.9449	27	1.0630	1	0.040	2960	1820	0.468	0.486	0.536
8608	87608	88608	40	1.5748	90	3.5433	27	1.0630	23	0.9055	27	1.0630	31	1.2205	1.5	0.060	2960	1820	0.695	0.709	0.750
8509	87509	88509	45	1.7717	85	3.3465	24	0.9449	21	0.8268	24	0.9449	27	1.0630	1	0.040	3300	2050	0.541	0.545	0.555
8609	87609	88609	45	1.7717	100	3.9370	30	1.1811	25	0.9843	30	1.1811	35	1.3780	1.5	0.060	3300	2050	0.891	0.914	0.995
8510	87510	88510	50	1.9685	90	3.5433	26	1.0236	22	0.8661	26	1.0236	30	1.1811	1	0.040	3560	2350	0.577	0.591	0.636
8511	87511	88511	55	2.1654	100	3.9370	27	1.0630	23	0.9055	27	1.0630	31	1.2205	1.5	0.060	4390	2970	0.727	0.745	0.809

	6005ZZV		25.02	0.9850	47	1.8504	15	0.5906	12	0.4724	15	0.5906			0.6	0.024	10060	5860		0.085
	6203ZZV		17.018	0.6700	40	1.5748	13.8	0.5433	12	0.4724	13.8	0.5433			0.6	0.024	9560	4780		0.07
	6204ZZV		20	0.7874	47	1.8504	15	0.5906	12	0.4724	15	0.5906			1	0.039	12800	6650		0.098
	6303ZZV		17	0.6693	47	1.8504	17	0.6693	14	0.5512	17	0.6693			1	0.039	12800	6650		0.13
	822-111C		25.4	1.0000	52	2.0472	21.4	0.8425	15	0.5906	21.4	0.8425			0.6	0.024	14020	7930		0.146
	626ZZ-A		6.1	0.2402	19	0.7480	7	0.2756	6	0.2362	7	0.2756			0.3	0.012	2800	1060		0.01
	CUAA6202-40		15	0.5906	35	1.3780	15	0.5906	14	0.5512	15	0.5906	15	0.5906	0.6	0.024	9560	4780			0.09
		T6203-W13ZV	15.7	0.6181	40	1.5748	13	0.5118	8	0.3150					0.6	0.024	9560	4780		0.073
		626ZZ-B	6.1	0.2402	19	0.7480	7	0.2756	6	0.2362			7	0.2756	0.3	0.012	2800	1060			0.01
		608-5	5.1	0.2008	22	0.8661	8.5	0.3346	7.5	0.2953			8.5	0.3346	0.855	0.034	3290	1360			0.017
		C608ZZ H20-9	8.1	0.3189	22	0.8661	20	0.7874	7	0.2756	9	0.3543	20	0.7874	0.3	0.012	3290	1360			0.03
		CUAA6202-40	15	0.5906	35	1.3780	15	0.5906	14	0.5512			15	0.5906	0.6	0.024	9560	4780			0.09
		8276-2RS	28.74	1.1315	55.54	2.1866	15.81	0.6224	12.9	0.5079			15.81	0.6224	1	0.039	11900	7460			0.15
		203KRR2	16.256	0.6400	40	1.5748	18.288	0.7200	12	0.4724			18.288	0.7200	0.6	0.024	9560	4780		0.082
